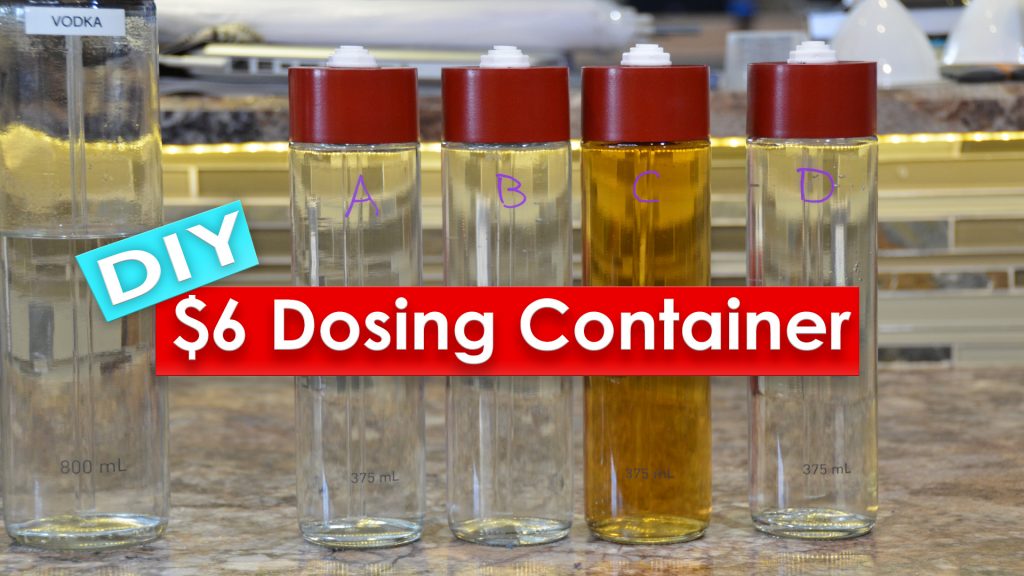

A true reefjunkie will try and make his sump and filtration just as nice as his display tank.. after all is the whole point of these glass boxes to create a living work of art? Stay tuned to see how i made some classy looking dosing containers for about $6 each.. not bad!
To start go to your favorite grocerie store and pick up a fancy schmancy Voss water bottle, they come in 375mm or 800ml depending on your size needs. Alternatively if you wanted a larger container pasta jars (with plastic lids) also make a great option. You will also need some 6mm or 1/4 acrylic tubing to suck from the bottom of the container and a 1/4″ bulkhead which i picked up from amazon.
Start by drilling the lid to fit the bulkhead, I prefer to use a step drill bit to ease the hole bigger until the bulkhead fits (quick and easy!) next you can choose to razor off/sand the extruded letters on the lid to give it that clean classy look. Once your lid is prepped you can hit it with a coat of krylon plastic fusion to go with your tanks color scheme.
Using a dremmel, razor, pvc cutters ect score and snap the clear 1/4″ acrylic tube to the correct length (you want it to site a few mm above the bottom of the dosing container.
Insert the acrylic tube into the bottom of the bulkhead and screw it in place.
Next drill a small breather hole beside the bulkhead to ensure the dosing pump doesn’t create a vacuum and the liquid can smoothly flow out.
To remove the letter on the Bottle, use a 2″ stainless razor blade and scrape it off under running water.. a fresh blade should easily scrape off the decals while not scratching the glass bottle.
Ideally try not to scrape the volume ml numbers as it looks good and is still semi useful 🙂
You can likely find singular versions parts locally as the tubing and VOSS bottles are sold in larger packs on amazon.. but if you would like to buy in bulk and support the channel please purchase through the affiliate amazon links below.
Parts List:
Voss Water Bottles: http://amzn.to/2swPTGz
Bulkheads: http://amzn.to/2sx15Tx
1/4″ OD Tubing: http://amzn.to/2qZ7Gnx
Where can I buy the tubing and bulkheads for the Voss bottles? Thanks
I found some similar ones on amazon and posted them at the bottom of the post.
I got better idea! 6 diy dosing containers.
thanks
More the merrier! hheehe
What tuning do you use to connect to Jebao doser?
I use Ro tubing for most things
Does this still work with plastic voss bottles?
Yep it should be the same size
